30'x40'x10' Double Truss Shipping Container Shelter
$5,690.00

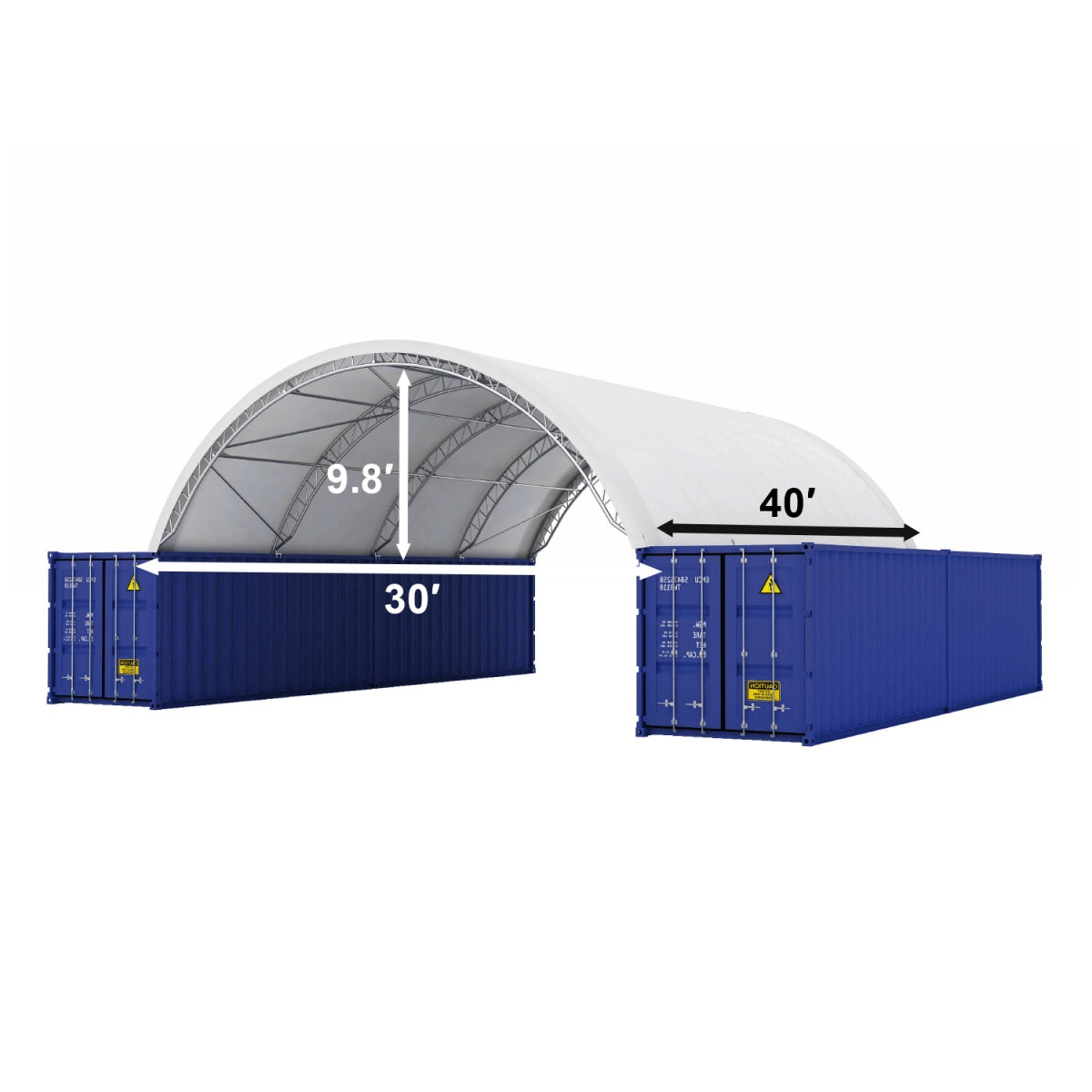

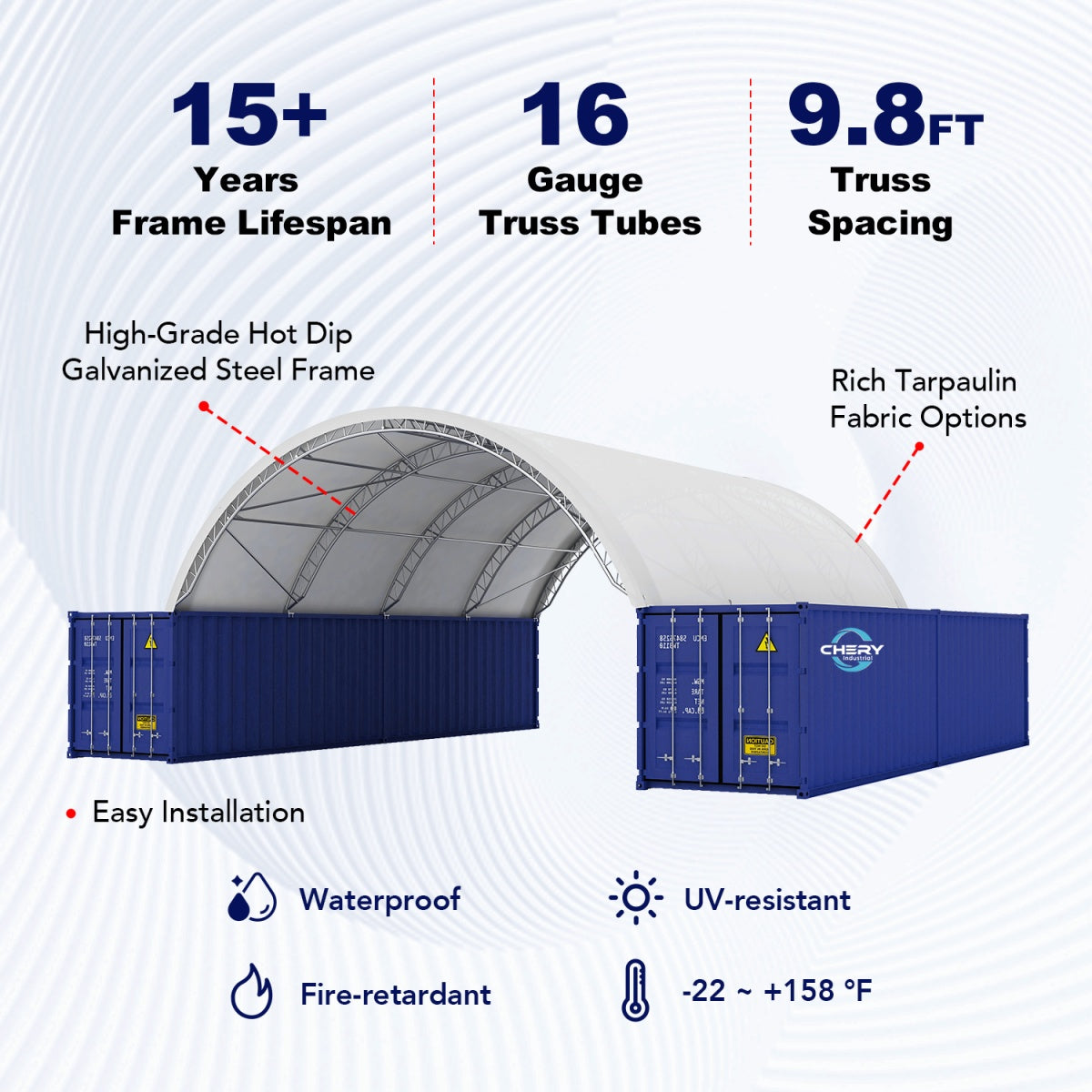

The 30' x 40' Double Truss Shipping Container Shelter provides 1,200 sq. ft. of covered space for equipment, vehicles, and materials. Its hot-dip galvanized steel frame features double trusses, 9.8 ft truss spacing, and a pipe-and-ratchet tensioning system for added structural support. With a rated snow load of 25 lb/ft² and PE or PVC cover options, this container canopy is suited to agricultural, construction, and industrial storage applications. The frame has a stated service life of 15+ years.
Purchase Notes
How to Install the Container Shelter?
Specification
| Description | Specifications |
| Model | C304010 Dome Container Shelter |
| Dimension (ft) | W30xL40xH10 |
| Frame | Double Truss Galvanized Tube |
| Steel Structure | High-Grade Hot Dip Galvanized Steel |
| Fabric |
|
| Fabric Feature | Waterproof, UV-resistant, Fire-Retardant, Self-Cleaning Property |
| Temperature resistance | -22 - +158 °F |
| Front/back walls (optional) | |
| Arch Interval | 9.8 ft |
| Arch Ø (mm) | Ø60x1.5 |
| Purlin Ø (mm) | Ø48x1.5 |
| Tension System | Pipe and Ratchet Tie-Down System |
| Easy Installation | Twist lock and clamp installation |
| Weld | |
| Average assembly time for DIY with 4 persons |
|
| Safety | The tarpaulin is PFAS-free and EU REACH compliant. |
| Tarp Lifespan | 7-10 years, depending on the type of fabric and environmental conditions. |
| Frame Lifespan | 15+ years |
| Warranty |
|
Note
- The term “lifespan” refers to the durability of the materials themselves, not to the installation of the canopy structure.
- The assembled canopy's structural integrity may be impacted by sudden weather changes (e.g., high winds, heavy snow, rain). Always check the forecast and consider the described limitations.
Feature
- CSA/TUV Snow Rating Report.
- SGS fabric Certificate.
- The tarpaulin is PFAS-free and EU REACH compliant.
- No pole inside, and 100% of the interior space is available.
- Usage: Warehouse, farm tent, equipment storage, car lot, temporary office, livestock house, workshop, parties, big event.
Package Size
- LxWxH (inch): 124x43.3x39 (18oz PVC cover)
- Weight (lb): 2249 (18oz PVC cover)
- A forklift or equivalent is required for unloading.
Attention
(1) Keep the work area clean. Cluttered areas invite injuries.
(2) Keep children away. Be aware of personal safety.
(3) It is easy to assemble if according to our assembly manual. Improper assembly may cause unnecessary mistakes.
(4) Be aware of possible windy conditions; fasten the base in concrete if this situation may occur. Remove the cover during the hurricane.
(5) Clean off snow in time and do not allow snow to sit for extended periods of time.
(6) Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to open flame.
(7) This unit is supposed to be set up on the inner edge of the container, if you want to set up on the outer edge of the container, you will need extra support tubes.
